Electric Crimp Tool for Insulated Closed End Connectors

JCW-CE02

Handheld electric crimper dedicated to insulated closed end splice caps

Custom crimp jaw for perfect fit on wire splice connectors

Eliminates hand strain during continuous multi-wire splicing

Uniform crimp keeps conductors locked firmly inside splice caps

Ergonomic lightweight handheld form for field and bench use

Great for electrical cabinet wiring and mass wire joint processing

Inquire Now

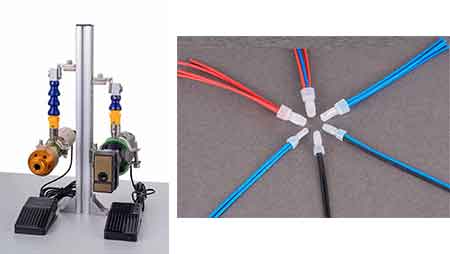

Closed end splice connector processing solution

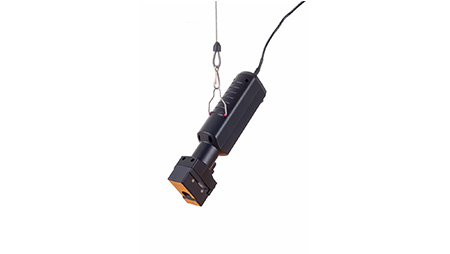

Handheld insulated closed end connector crimper

JCW-CE02 Electric Crimp Tool for Insulated Closed End Connectors

The JCW-CE02 is a dedicated handheld electric crimping tool optimized exclusively for insulated closed end splice connectors, commonly known as wire splice caps. It streamlines multi-wire splicing work that is widely seen in electrical wiring and cabinet assembly.

This handheld powered tool removes the fatigue of repeated manual crimping. Its custom jaw profile matches the shape of closed end caps precisely, forming tight, consistent crimps to lock multiple conductors securely inside the splice cap. It avoids uneven crimping or insulation damage often found with generic hand pliers.

Lightweight and ergonomically shaped, it can be operated comfortably for long runs of splice work. Ideal for electricians and harness workshops doing bulk multi-wire joint termination.

Model	JCW-CE02 Electric Crimp Tool for Insulated Closed End Connectors
Capacity	CE1 & CE2, CE5 type
Pull tester	10 kg.f
Cycle time	0.5 second [ Recommend 0.2 - 1.0 second ]
Service life	1.5 million
Start mode	Button / foot pedal
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Adapter output	DC 30V
Dimensions	H 70 x W 30 x L 250 mm. Holding position diameter 40 mm
Weight	0.7 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
