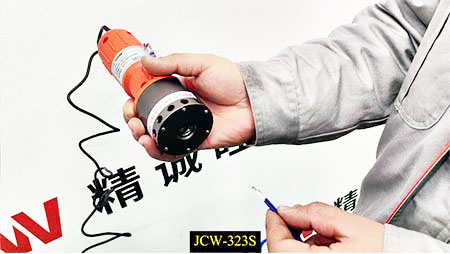

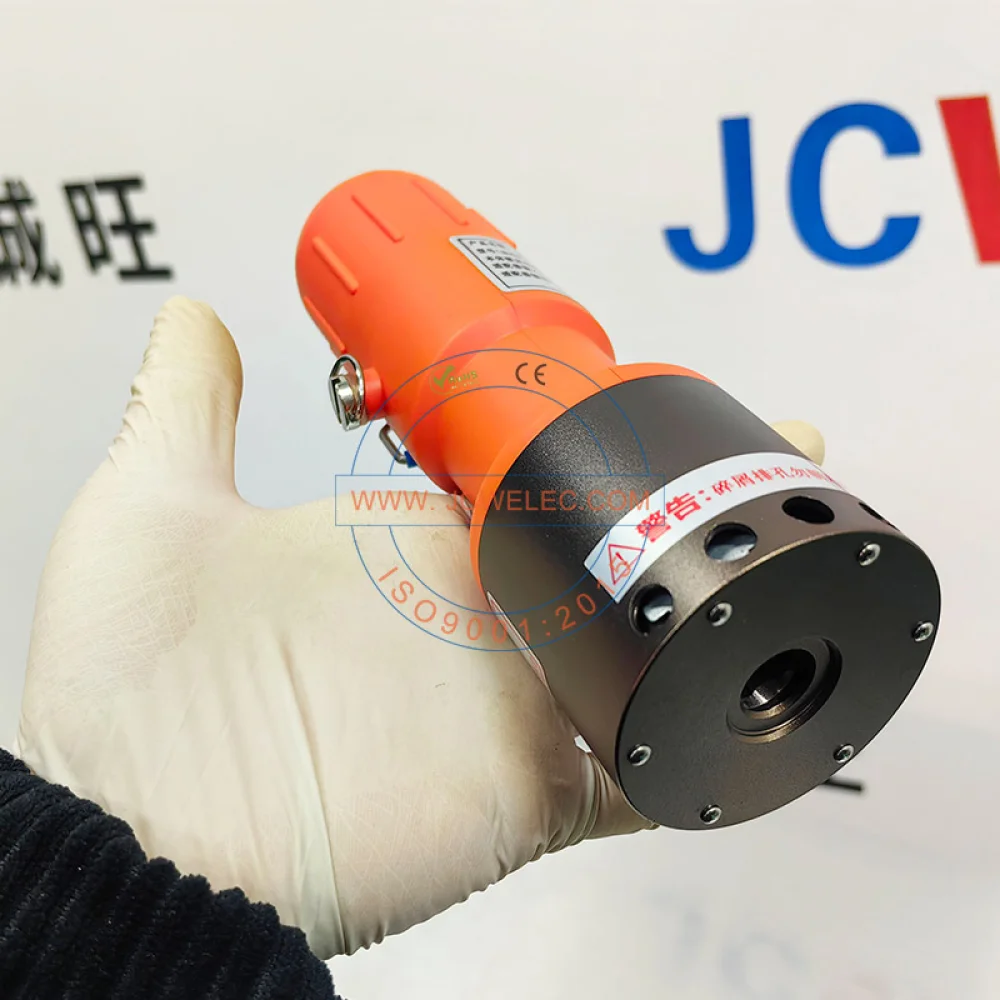

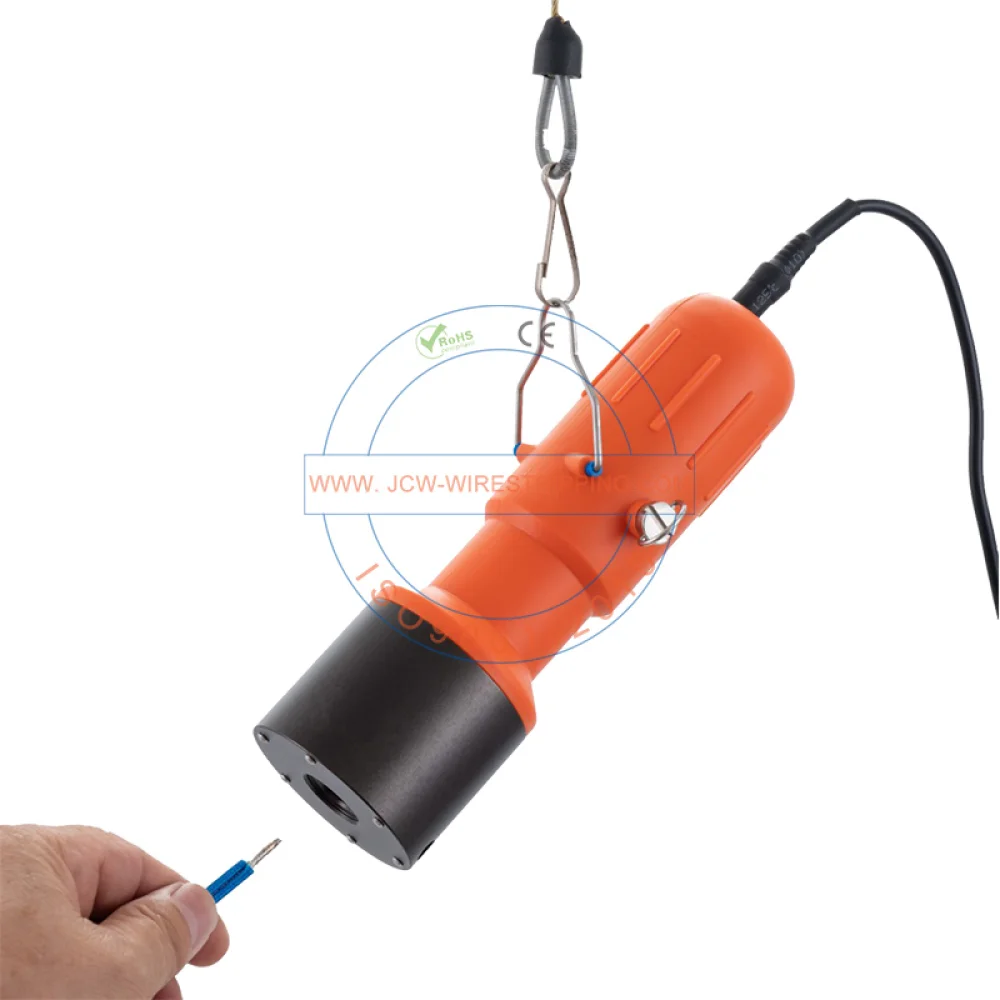

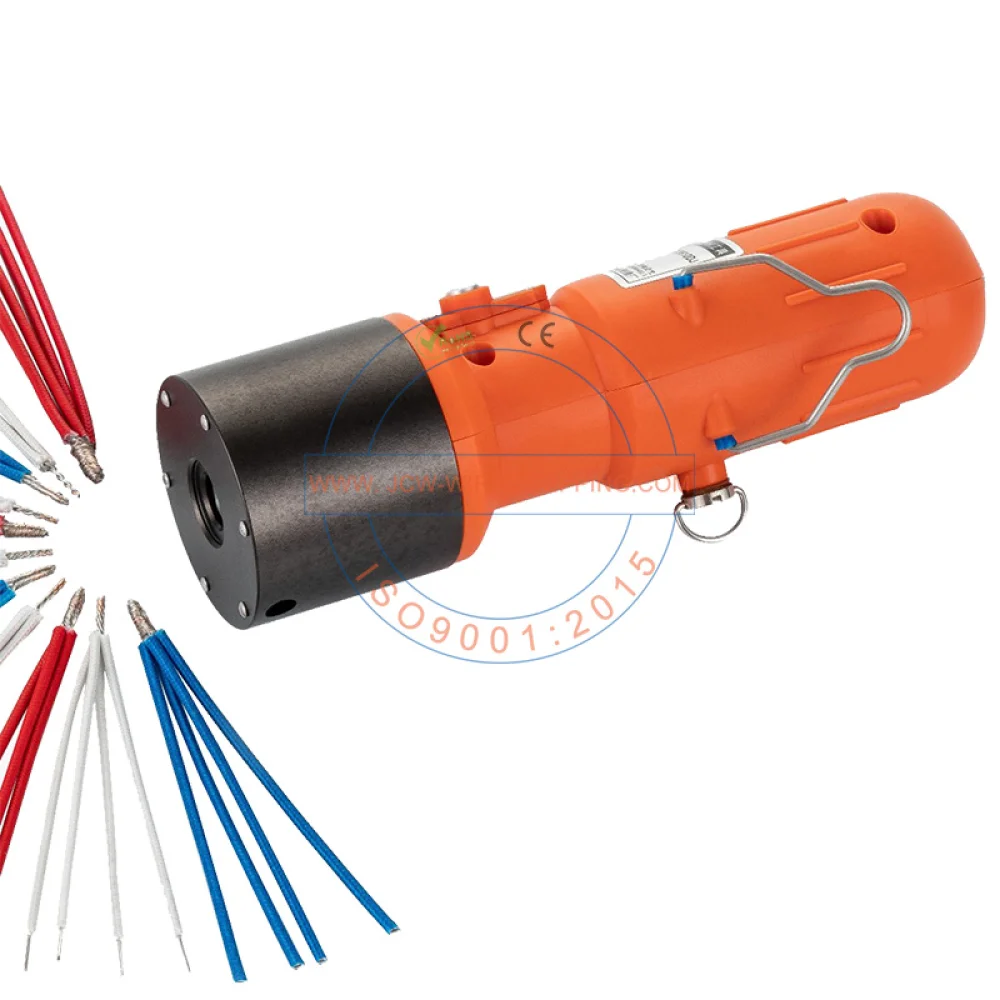

JCW-323S
Handheld model, not compatible with foot pedal or base.
Reinforced wire twisting tool, 60W rated power
Soft wire: up to 6 mm²
Hard wire: 4 x 1 mm²
Adjustable twisting speed
Mini size, portable and ergonomic design
Short cycle time, each cycle takes 0.5s
Self-locking power cord, prevents accidental disconnection.
Anti-roll design
Max 6mm² Wire Twister
| Model | JCW-323S 6mm² Handheld Wire Twist Tool |
| Function | Stranded wire, hard wire, button, foot pedal |
| Capacity | Total conductor cross-sections 0.05 - 6 mm² max |
| Twisting length | 5 - 30 mm [ Ideal range 10 - 15 mm ] |
| Cycle time | 0.5 second [ Recommend 0.2 - 1.0 second ] |
| Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
| Dimensions | D 63 x L 248 mm. Holding diameter: 40 mm |

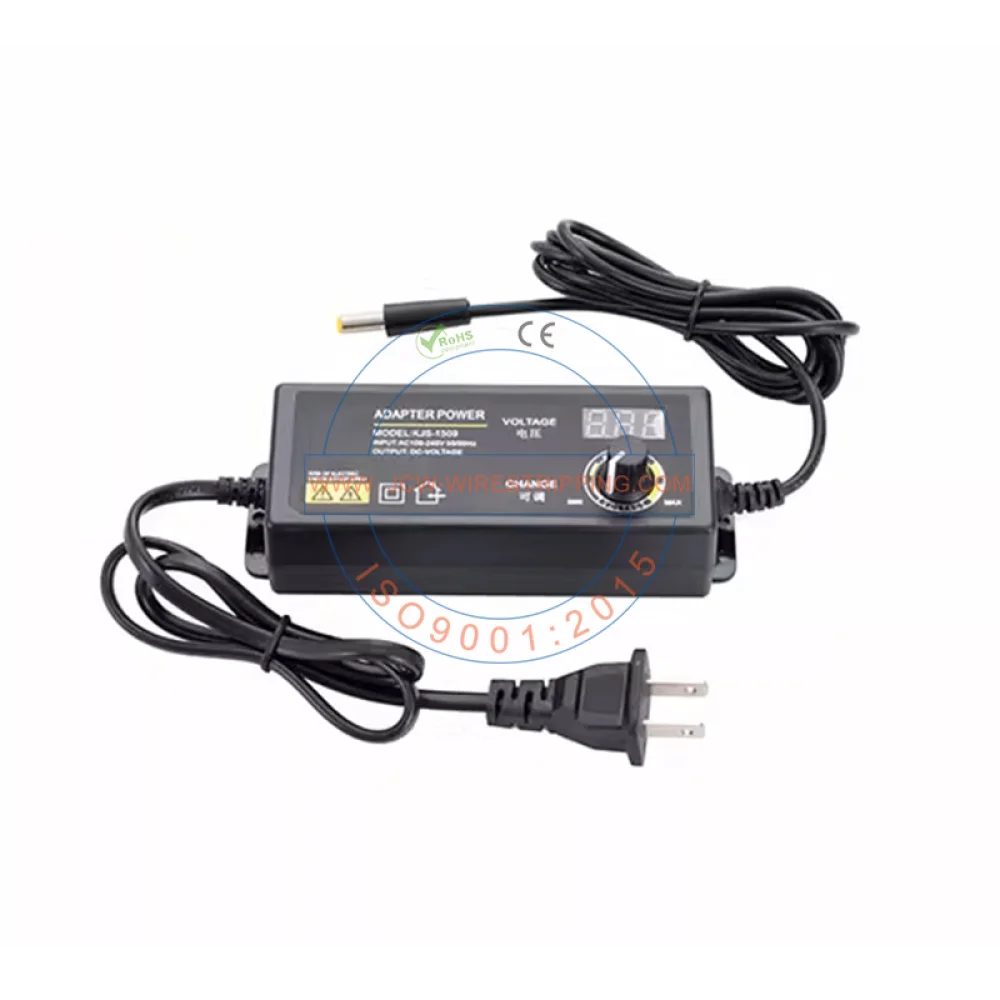

| Adapter | 30V, adjustable voltage |
| Power cord length | 1.6 m |
| Weight | 0.515 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
