JCW-T09
Low-cost, highly flexible, modular design
Quick-change die sets to match different shaped cable ties
Suitable for all types of standard and non-standard cable ties
Quickly change the cutter to change the tail shape
Adjustable pulling tension and cutting length
Multiple units can be combined to form a production line
Significantly improving production efficiency

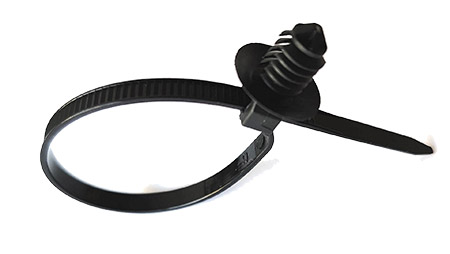

Automotive cable tie processing
Low-cost solution for processing regular & irregularly shaped cable ties
1. Automatically tightens cable ties and cuts the tail, with a success rate and stability approaching 100%.
2. The JCW-T09 can be used independently or in combination with multiple units to form multi-tasking systems. It can be started and stopped simultaneously with a single button.
3. The minimum distance between two units is 50mm.
4. It is compatible with different types of cable ties; only the top cavity plate needs to be replaced, resulting in low cost and quick replacement.
5. The tightening force (4 levels) and the tail length are adjustable.
6. The standard model has a straight cut, which can be changed to an arc-shaped cut by replacing module cutter quickly.
7. The standard model uses a foot switch for triggering; it can be modified to use inductive triggering or microswitch triggering.
Model | JCW-T09 Fixed cable tie tensioning and cutting machine |
Nylon tie range | Width ≤7mm |
Thickness 0.8mm-1.6mm | |
Pulling force | Max 15 kgf |
Cycle time | 1 second |
| Activation method | Foot pedal (sensor / button-activated optional) |
Power supply | AC 110 - 240V, 50/60 Hz |
Dimensions | L 150 x W 50 x H 140 mm |
Weight | 3-5 KG |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
