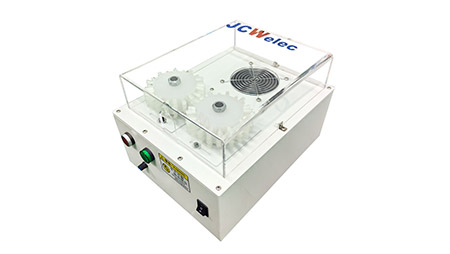

Braid Brushing Collecting Machine

JCW-322N

Use for de-braiding cable shields

Two-way rotation to make a folding

Added scrap collecting fan & container

Inquire Now

The JCW-322N is an upgraded version of JCW-322, which has a dust collection device with a separate start and stop switch. The powerful fan can suck debris and dust into the drawer, making cleaning quick and easy. The dust and debris drawer area is completely isolated from the machine motor controller circuit part, ensuring that the machine circuit controller part is stable and not prone to short circuit.

Model	JCW-322N Braid Brushing Collecting Machine
Function	Braided metal shielding, two-way rotation, adjustable brush spacing, safety cover
Brushing speed	0 - 6000 RPM
Brushing length	5 - 60 mm [ 90mm is optional ]
Cable diameter	0.1 - 25 mm
Rated power	150 W
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Dimensions	L 320 x W 420 x H 260 mm
Weight	35 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
